概况

M71H2和M91H2系列现在可用于氢气压力传感应用。经过多种氢气和汽车标准的测试，氢气系列结合了氢气测量的精巧机械设计和高性能数字补偿。

   优点

更加紧凑和简化的设计

使用微熔丝传感技术，重量更轻

专为高容量应用而设计

包括传感器级诊断

EC-79认证

   应用

质子交换膜燃料电池/储氢/加氢站试验台/备用电源

   Overview

The M71H2 & M91H2 series is now available for hydrogen pressure sensing applications. Tested to a variety of hydrogen and automotive standards, the HYDROGEN series combines the best mechanical design for hydrogen measurement with high ;performance digital compensation.

    Benefits

   More compact and simplified design

   Uses TE’s Microfusedsensing technology Lighter Weight

   Designed for higher volume applications

   Includes sensor level diagnostics

   EC-79 Certification

   Applications

   PEM Fuel Cells

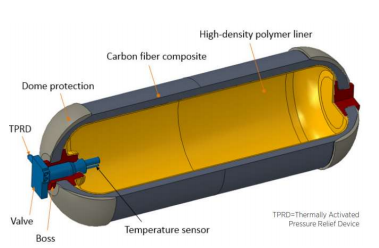

   Hydrogen Storage

   Hydrogen Filling Stations Test Stands

   Back Up Power

   Electrical Data

   EC-79 Certification

H2 Compatibility:            Wetted Material must be compliant to ISO11114-1

Ageing Test:                    Compliant to D572. Exposed to O2@85C + 2MPA.

Corrosion Resistance:      Compliant to ISO9227 Salt Spray 144 Hrs

Endurance Test:               72K Pressure Cycle at Amb, 1.5K Cycles -40C, 85C.

Hydraulic Test:                Hydraulic 115K Pressure Cycles at Ambient

External Leakage:            Over Temperature, at Nominal Work Pressure.

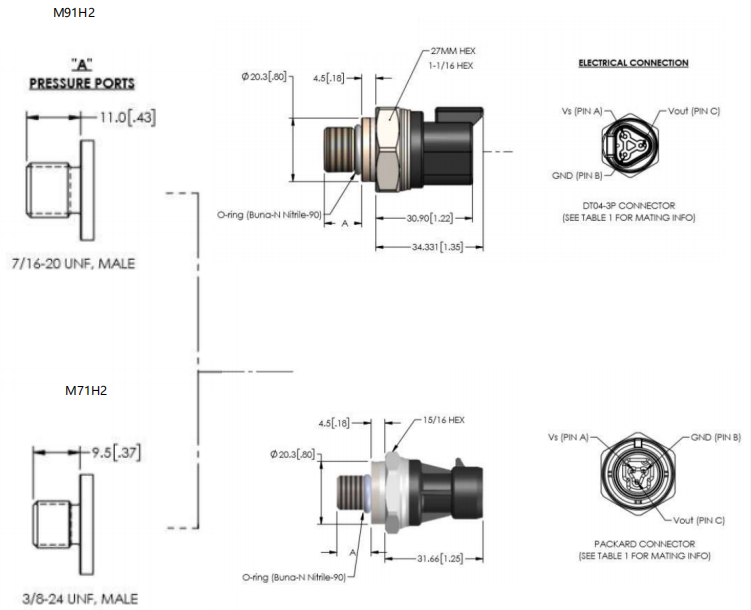

    Dimensions&Electrical Connection
